NPP Power High Rate series batteries are specially designed for applications that require high power output. With their high-power density and low internal resistance, the HR series are the right choice for your most demanding applications.
Batteries
HR Series

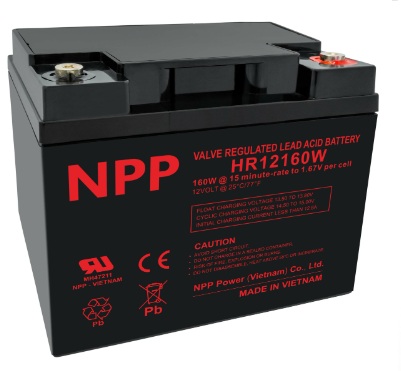

HR12160W
€126.00 excl btw
- Operation at low internal pressure
- Positive and negative plates in lead-calcium-tin alloy
- Superior energy density
- Very high power output
- Container available in flame retardant (UL 94-V0)
| Battery Model | HR12160W | |
| Nominal Voltage (V) | 12 | |
| Rated Power [W/cell] @15min 1,67 V/cell 25°C | 160 | |
| Rated Capacity 20Hr 1,80 V/cell [Ah], 25°C | 48 | |
| Internal Resistance [mΩ] | 7.0 | |
| Terminal Type | T14 | |
| Terminal Location | D | |
| Design Life [years] Eurobat 20°C | 10/12 | |
| Approx. Weight [Kg] ±3% | 14.30±3% | |
| Dimensions [mm] | Length | 197±2 |
| Width | 165±2 | |
| Height | 165±2 | |
| Total Height | 170±2 | |
HR12160W
